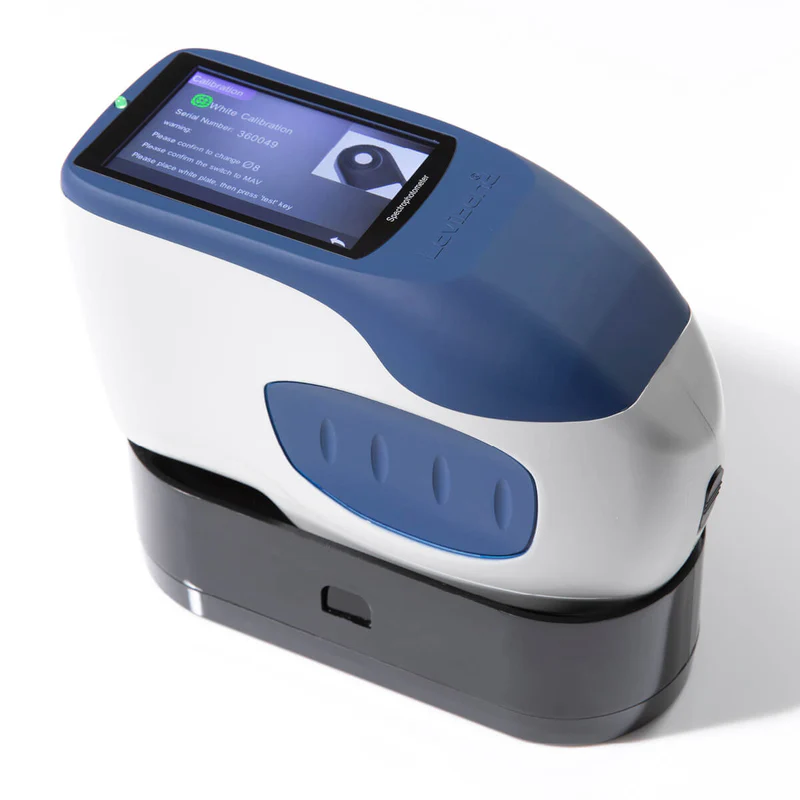

Lovibond TR 500 8mm aperture Sphere Geometry Reflectance Color Spectrophotometer
Lovibond TR 500 8mm aperture Sphere Geometry Reflectance Color Spectrophotometer

Color Measurement Item Code: TR 500

Lovibond TR 500 8mm aperture Sphere Geometry Reflectance Meter

  1. Intuitive On-board Icon-based Software
  2. Easy To Follow On-board Instructions
  3. Free OnShade PC-based Software for Graphs and Statistical Process Control
  4. Ergonomic Design for Prolonged Use

Delivery Content

  1. TR 500 Handheld, Sphere Spectrophotometer
  2. OnShade PC Software
  3. White and Black Calibration Board (white tile and black port)
  4. Dust Cover
  5. USB Cable
  6. External DC Power Supply
  7. USB Stick with User Manuals in English, French, German, Spanish, Portuguese and Chinese
  8. Sturdy Carrying Case

Techincal Data

Colour Type: Opaque

Light Source: Combined LED Light

Optical Geometry: Reflect: di: 8°, de: 8° (diffused illumination, 8 degree viewing angle)

Integrating Sphere Size: 48 mm

Spectrophotometric Mode: Concave Grating

Sensor: 256 image Element Double Array CMOS Image Sensor

Display: 3.5 inch TFT colour LCD, Capacitive Touch Screen

Interfaces: USB, Bluetooth 4.0

Spectral Interval: 10 nm

External Storage: 2000 Standards : 20000 Samples

Measurement Mode: Single Measurement, Average Measurement

Power Supply: Li-ion Battery

Battery Life Time: 5000 measurements with 8 hours

Location Method: Camera View Finder Locating

Measured Reflectance Range: 0 - 200 %

Measurement Time: 2.6 s

Measuring Aperture: Customized Aperture: 8mm/4mm & 1x3mm

Specular Component: SCI & SCE

Colour Difference Formular: ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc (2:1), ΔE*cmc (1:1), ΔE*00v, ΔE (Hunter)

Other Colorimetric Index: WI (ASTM E313, CIE/ISO, AATCC, Hunter)

YI (ASTM D1925, ASTM 313, TI (ASTM E313, CIE/ISO)
