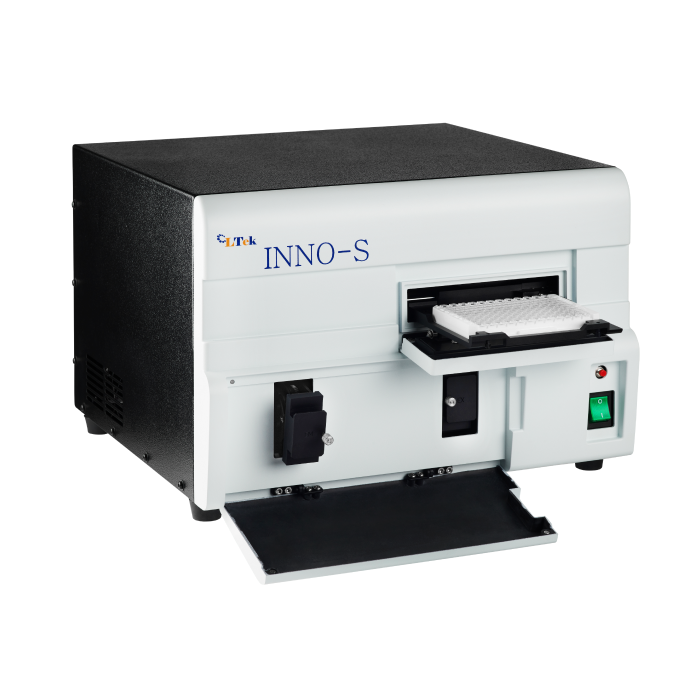

LTEK Microplate reader Absorbance, Luminescence, Fluorescence, Shaking, Incubation & TRF.

INNO-S has three main detecting functions. Since INNO-S is a monochromator-based microplate spectrophotometer for the absorbance measurements, it requires zero filters and allows you to measure from 200 to 999 nm freely at your choice of 1nm increment. Also Xenon lamps in absorbance will serve the instrument semi-permanent life time which brings the comfortable experiences to the users since the lamps do not need to be replaced such as halogen lamps.

Fluorescence using High Power LED to provide TRF (Time Resolved Fluorescence) and various convenient features as ready to run at “on”. Also HPL has semi-permanent life time which the user does not have to go through the burdens such as switching the fluorescence light source every once in a while.

Microplate type: 6-384 well plate

Detector Modes: Fluorescence (top and bottom), Time-resolved fluorescence, Luminescence, UV-Visible absorbance

Read Methods: End point, Kinetic, Spectral scanning, well-area scanning for Absorbance. Luminescence and fluorescence are available with End point, kinetic and area scanning.

Detector: Photodiode

Wavelenght Range: 200-999 nm, 1 nm increments

Dynamic Range: 0-4.0 O.D

Resolution: 0.0001 OD

Monochromator wavelenght accuracy: +/-2 nm

Monochromator wavelenght repeatability: +/-0.2 nm

Sensitivity: Top and Bottom : Fluorescein 5 pM (1 fmol/well, 96-well plate)

Detector: PMT

Wavelength Range: 350-750 nm (options 850 nm)

Wavelength Selection: Filters

Temperature control: Incubation up to 50°C ±0.5°C at 37°C

Shaking function: Linear & Orbital with 4 different speeds

Software: INNO-X (Microsoft windows software)
