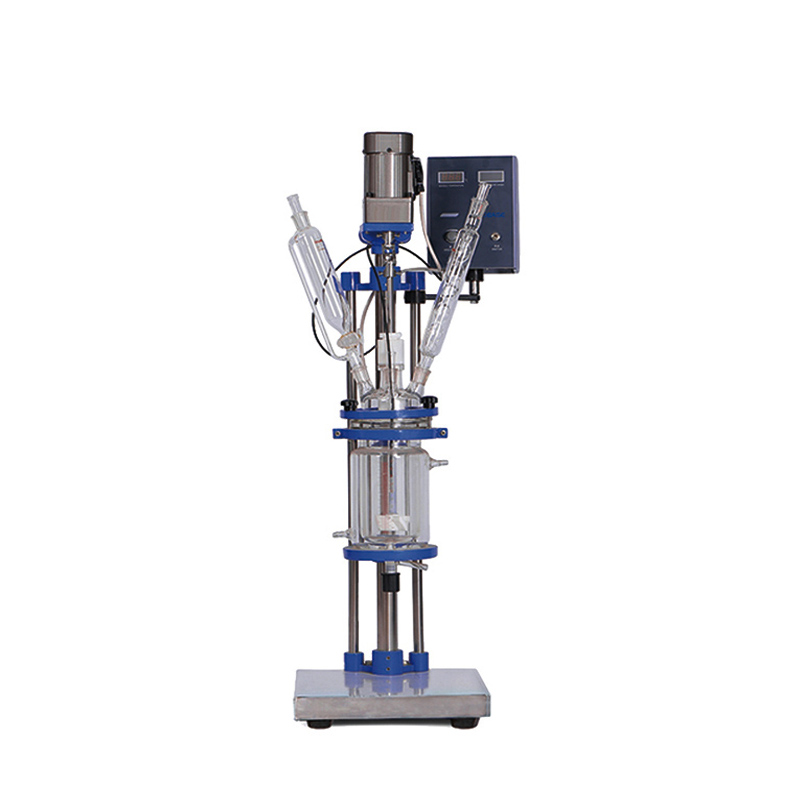

JGR-2L Jacketed Glass Reactor 2L

Application:

Jacketed glass reactors are designed for synthetic reaction of different types of materials in a controlled temperature and vacuum environment. Each reactor features adjustable stirring speeds and a constant pressure feeding funnel that allows you to add material to the vessel at a uniform and controlled speed. The built-in condenser makes it possible to recover some materials, also at a controlled rate of speed.

Features:

* GG17 high borosilicate glass, with good chemical and physical properties.

* The evaporation and back-flow of reaction material can be controlled.

* The heat of reaction could be taken away quickly through water, cycling in the jacketed glass.

* The design of large bottle mouth, easier to clean.

* It can be used as a distillation syntheses device.

* The sealing performance is 0.098 Mpa.

* LCD display, easier and more convenient to measure temperature.

Optional Equipment:

* Circulating water vacuum pump: (JGR・1L~5L, recommend mode SHZ-DIII, JGR-10L~100L, recommend model SHZ-95B)

* Refrigerated Circulator

* Circulating water/oil bath
