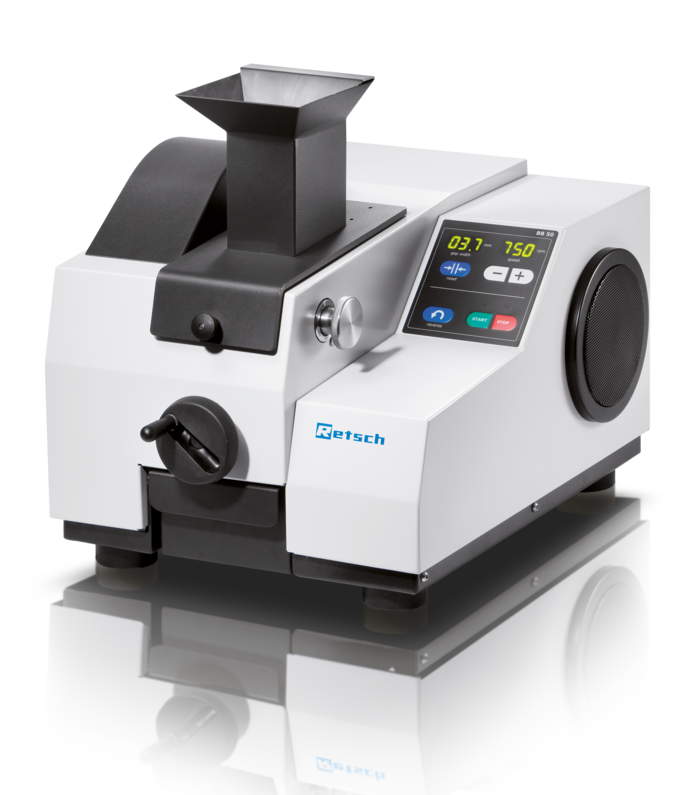

Jaw Crusher BB 50 For rapid and gentle coarse crushing

Item Code: 5432016



Jaw Crusher BB 50 For rapid and gentle coarse and preliminary size reduction of hard, brittle and hard-ductile materials. Dust-tight bench top crusher for the rapid and gentle coarse and preliminary size reduction of hard, brittle and hard-ductile materials. Small amounts of sample with large feed sizes are crushed gently and without loss.


Technical Data:


High final fineness down to d90 < 500 µm*.

Adjustable speed from 550 to 950 min-1.

Digital setting and storage of gap width.

Lifetime lubrication.

Removable crusher arm for easy cleaning.

Dust-tight, maintenance-free.

Feed size: < 40 mm

Final fineness: d90 < 50 µm

Throughput / batch: 200 kg / h

Speed: 550 to 950 min-1.

Germany

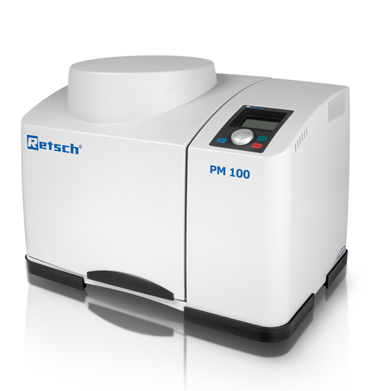

Retsch PM 100 Planetary Ball Mills PM Series Planetary ball mills


Item Code: 5425419



Retsch PM 100 Planetary Ball Mills PM Series Planetary ball mills are suitable for mixing and grinding soft, medium-hard, extremely hard, brittle and fibrous materials. They are used whenever high degrees of fineness down to the submicron range are to be achieved in a very short time. In addition to dry and wet grinding, they are also suitable for colloidal grinding and mechanical alloying. Extremely high fineness down to submicron range. 1 grinding stations. Grinding jar volume 12 to 500 ml.


Technical Data:


Final fineness: < 1 μm

Speed ratio: 1 : to 2

Feed size: up to 10 mm

Manufactured by Retsch , Germany

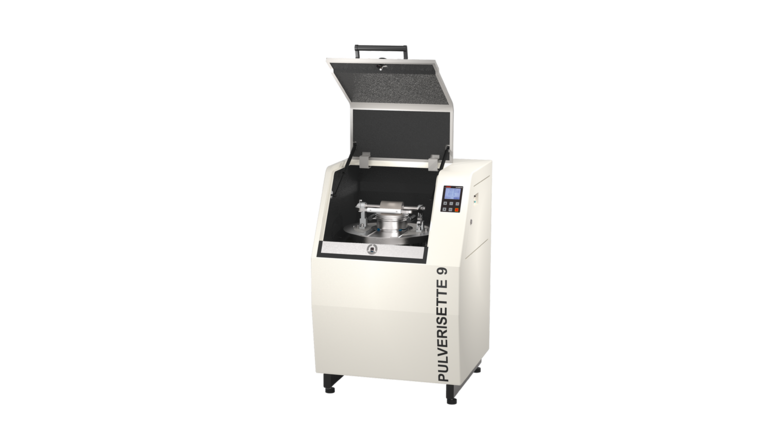

Fritsch Vibrating CupMill PULVERISETTE 9 230/240 V

Item Code: 09.5000.00



Fritsch Vibrating Cup Mill PULVERISETTE 9 230/240 V GERMANY

The new, completely modified Fritsch Vibrating cup Mill PULVERISETTE 9 offers many practical advantages in all areas in which hard, brittle and fibrous material must be ground extremely quick down to analytical fi neness. Now with increased grinding power and a completely new drive concept, even safer and easier to tension the grinding set, especially quiet, simple to operate and quick to clean.


Working principle Impact Bearings Ball- and cylindrical roller bearings

Equipment Instrument without grinding set

Optimal for material type Hard, medium-hard, brittle, fibrous

Max. feed size (depending on the material) 12 mm

Min. sample quantity 10 – 20 ml

Max. sample quantity 250 ml

Final fineness 10 – 20 µm

Feeding Batchwise

Grinding parts Grinding set with grinding puck and impact ring

Motor speed 600 – 1500 rpm

Useful capacity 50, 100 or 250 ml

Conformity CE mark

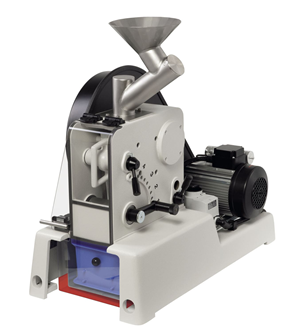

Fritsch Classic line PULVERISETTE 1 , 230 V/1 (Brand : FRITSCH- GERMANY)

Item Code: 01.5020.00



Fritsch Classic line PULVERISETTE 1 , 230 V/1 (Brand : FRITSCH- GERMANY)

The compact Fritsch Jaw crusher PULVERISETTE 1 classic line is the ideal instrument for fast and effective pre-crushing of hard and very hard brittle materials – even ferrous alloys are no problem for this instrument.

The powerful comminution of the sample takes place in the Jaw Crusher under high pressure between one fi xed and one movable crushing jaw in an enclosed grinding chamber. The fi nal fi neness is easily set from the outside with the 10-stage adjustable gap width between the crushing jaws.

Working principle Pressure Bearings Needle and spherical roller bearings

Standard equipment Instrument with fixed and movable crushing jaw and lateral support walls of tempered steel

Optimal for material type Hard, medium-hard, brittle

Max. feed size (depending on the material) 60 mm resp. 95 mm

Min. sample quantity 20 ml

Max. continuous throughput (depending on material and gap width) 140 kg/h resp. 200 kg/h

Final fineness 1 – 15 mm

Feeding Batchwise/continuous

Grinding parts Fixed and movable crushing jaws

Eccentric oscillations 308 movements/min

Conformity CE mark


TERMINATOR Jaw Crusher Model JCT#1AL- Automatic Lubrication, capacity 5" X 7"



TERMINATOR Jaw Crusher Model JCT#1AL- Automatic Lubrication, capacity 5" X 7" Unit, equipped with one set of smooth or serrated jaws (alloy 1 or 2), 208/220/440/575 volt, 3 phase, 60 cycles, 5 HP motor, automatic lubricating system also powered by electric motor, accessories for adjustment of jaws, and rubber mat for underneath crusher. This model needs only to be connected to your power supply, all pre-wiring is done at the factory.

Included:

-Safety feeder / hopper

-Stand (24" high) with Stainless Steel Drawer

-Dust collecting hopper


Manufactured by TM Engineering, Canada


Vibratory Ring Pulverizer Model TM/STLX



Vibratory Ring Pulverizer Model TM/STLX Unit, with sound dampening enclosure, digital timer for automatic grinding cycle control, On/Off and emergency switch, 208/220/440/575 volt, 60 cycle, 3 phase, 1 HP electric motor

Included:

-G-1-500ML Grinding Barrel 500mL, alloy-1, Complete

-V055A Snap on adaptor and plunger for 500mL grinding barrels


Manufactured by TM Engineering, Canada
