Flash Point Testers

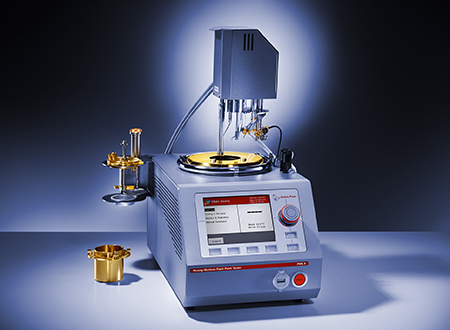

Pensky Martens Flash Point Tester PMA 5

Item Code: 107125

Image result for pma 5 anton paar

Application range up to 405 °C (°C/°F selectable)

Ignition Gas and electric (interchangeable)

 Heating According to method or user-defined

 Stirring According to method or user-defined

Cooling Built-in forced air (fan)

Flash point detection Thermocouple

Sample temperature Pt100 stainless steel probe

Sample temperature calibration Dynamic calibration against certified ASTM thermometer and
offset capability with correction table (21 calibration points)

Barometric pressure correction Automatic correction

Safety Overheat protection, automatic shut-off, fire-extinguishing system, password

Interfaces 3x USB, 1x RS232, 1x LAN

Gas supply Test flame: 50 mbar of propane or butane
Power supply Fire extinguisher: 6 bar to 12 bar of nitrogen
                            or carbon dioxide

115 V/230 V, 50 Hz/60 Hz, 1000 W

Dimensions 230 mm x 410 mm x 460 mm (W x D x H)

Weight 14 kg


ASTM D93-A
ASTM D93-B
ASTM D93-C



Cleveland Flash Point Tester CLA 5


Image result for cla 5 anton paar


The automatic Cleveland Open-Cup (COC) measures and describes the properties of a sample in response to heat and a test flame under controlled conditions. The flash point measures the tendency to form a flammable mixture with air while the fire point indicates the tendency of sustained burning.
CLA 5 is suitable for flash and fire point applications of lubricants or bituminous material.


Application range up to 400 °C (°C/°F selectable)

Ignition Gas

 Heating According to methods, programmable and pre-heat mode

Cooling Built-in forced air (fan)

Flash point detection Ionization detector

Sample temperature Pt100 glass probe

Sample temperature calibration Dynamic calibration against certified ASTM thermometer and
offset capability with correction table (21 calibration points)

Barometric pressure correction Automatic correction

Safety Overheat protection, automatic shut-off, fire-extinguishing system, password

Interfaces 3x USB, 1x RS232, 1x LAN

Gas supply Test flame: 50 mbar of propane or butane
Power supply

115 V/230 V, 50 Hz/60 Hz, 1000 W


AASHTO T48

ASTM D92

IP 36

ISO 2592
